PVC Sol
Youngwoo CF's Main Products Information

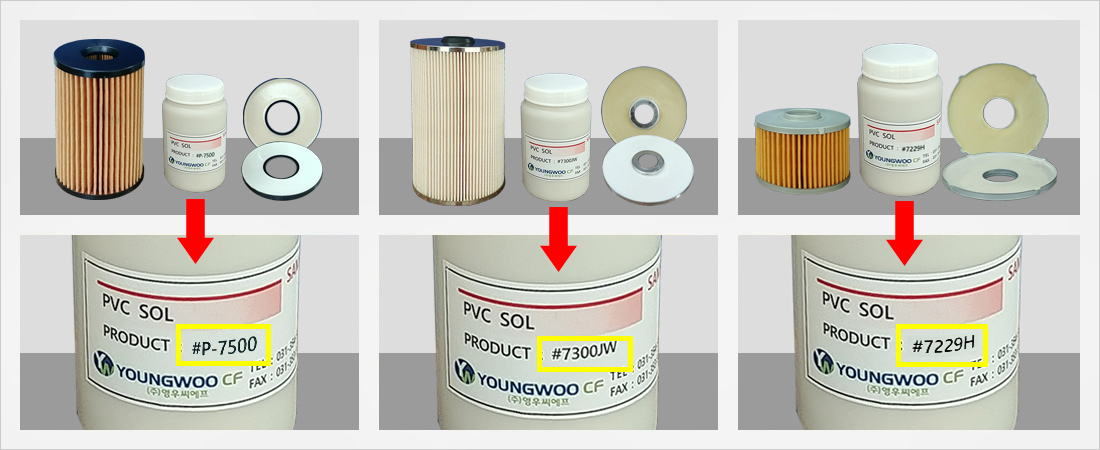

- Youngwoo CF’s PVC SOL is heat curing adhesive and mainly based on PVC resin.
- It was developed for automotive oil, fuel filter, air filter (from passenger car to heavy duty vehicle) and various industrial filter.
- Easy to use : one component type, short curing time.
|
#7229H |
#7229HS |
#7300JW |
#P-7500 |
REMARK |
|
|
Viscosity (cps/20℃) |
20,000~60,000 |
5,000~20,000 |
20,000~60,000 |
18,000~45,000 |
BH type #7/20rpm |
|
Specific Gravity |
1.65 ± 0.1 |
1.65 ± 0.1 |
1.65 ± 0.1 |
1.4 ± 0.1 |
Cup type JIS K 6829 |
|
Hardness |
80 ± 5 |
75 ± 5 |
80 ± 5 |
80 ± 5 |
Durometer A-type (KSM-6784) |
|
Solid Content(%) |
97 ± 2 |
97 ± 2 |
97 ± 2 |
97 ± 2 |
100℃/3hr (KSM ISO 124) |
|
Tensile Strength(kgf/㎠) |
20 ± 5 |
20 ± 5 |
30 ± 5 |
30 ± 5 |
175℃/12min~15min |
|
Heating Aging(kgf/㎠) |
25 ± 5 |
25 ± 5 |
40 ± 5 |
40 ± 5 |
175℃/12min+120℃/72hr in Oven |
|
Oil Proof(kgf/㎠) |
25 ± 5 |
25 ± 5 |
40 ± 5 |
40 ± 5 |
175℃/12min+120℃/72hr. In eng.oil |
Epoxy
Youngwoo CF's Main Products Information
- Youngwoo CF’s Epoxy is two components type adhesive and mainly based bisphenol A epoxy resin(YW-E801A) & polyamide hardener(YW-E801B) / amin hardner(YW-EH804).
- YW-E801 was developed for automotive fuel filter and YW-ER804 was developed for electric/electronic parts molding.
|
|
YW-E801A/E801B |
YW-ER804/EH804 |
||
|
Viscosity |
YW-E801A |
40,000~60,000 |
YW-ER804 |
6,000 ~ 10,000 |
|
YW-E801B |
Paste |
YW-EH804 |
400 ~ 6,000 |
|
|
Hardness |
85 ~ 90 |
95 ~ 97 |
||
|
Mixing Ratio |
100 : 100 |
100:50 |
||
|
Characteristic |
- High Thixotropic |
- Withstand Voltage : 13~17 (kV/mm) |
||
|
Usage |
- Basic Epoxy Adhesive |
- Electric Electronic parts molding |
||
Sealing Compound
Youngwoo CF's Main Products Information
- Youngwoo CF’s sealing compound YW-301 is natural curing type sealant and it was developed for automotive filters with the purpose of internal pressure and oil resistance.
- Type : Synthetic Rubber
Poly Urethane
Youngwoo CF's Main Products Information
- Youngwoo CF’s Polyurethane is two components type adhesive and mainly based polyisocyanate & polyol compound.
- For end-user’s usage, mixing ratio and color can be changed.
|
DS-30 (SOFT TYPE) |
DS-70 (HARD TYPE) |
|||
|
DS-300I |
DS-300 |
DS-70I |
DS-70PS |
|
|
Viscosity (cps/25℃) |
300 ± 200 |
1,200 ± 500 |
170 ± 30 |
1,200 ± 600 |
|
Specific Gravity |
1.20 ± 0.05 |
1.05 ± 0.05 |
1.22 ± 0.03 |
1.02 ± 0.03 |
|
Mixing Ratio (wt%) |
50 |
100 |
70 |
100 |
|
Composition |
Polyisocyanate |
Polyol Compound |
Polyisocyanate |
Polyol Compound |
|
Characteristic |
• Hardness : 40 ± 5 (ASKER C) |
• Hardness : 95 ± 5 (ASKER C) |
||
|
Usage |
• Polyether Soft Type Air Filter |
• Polyether Hard Type Air Filter |
||
